AudioDataLib::WaveTableData Class Reference

An instance of this class contains just enough data to reasonably synthesize a set of instruments using MIDI messages. More...

#include <WaveTableData.h>

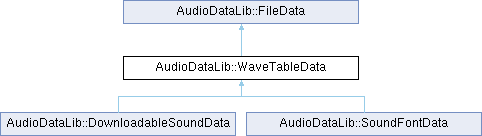

Inheritance diagram for AudioDataLib::WaveTableData:

Classes
class	AudioSampleData
	This is AudioData with extra information needed by a synthesizer. More...

Public Member Functions
	WaveTableData ()
virtual	~WaveTableData ()
virtual void	DumpInfo (FILE *fp) const override
virtual void	DumpCSV (FILE *fp) const override
virtual FileData *	Clone () const override
void	Clear ()
void	AddSample (std::shared_ptr< AudioSampleData > audioSampleData)
void	Merge (const std::vector< const WaveTableData * > &waveTableDataArray)
uint32_t	GetNumAudioSamples () const
const AudioData *	GetAudioSample (uint32_t i) const
std::shared_ptr< AudioData >	GetAudioData (uint32_t i) const
const AudioSampleData *	FindAudioSample (uint8_t instrument, uint16_t midiKey, uint16_t midiVelocity) const
Public Member Functions inherited from AudioDataLib::FileData
	FileData ()
virtual	~FileData ()

Detailed Description

An instance of this class contains just enough data to reasonably synthesize a set of instruments using MIDI messages.

What's not contained in this class is all the model and graph data specific to a particular audio engine. Rather, a minimalistic approach is taken here where we just want a simple set of samples, each detailing the associated instrument, key ranges, velocity ranges, original pitch, looping characteristics, channel, and maybe a few other things. The SampleBasedSynth class, or any other class for that matter, can or will make up its own system of synthesis that utilizes this data. Admittedly, some valuable data isn't captured as a consequence of this when loading an SF2 or DLS file, but the goal here isn't completeness, but that of something simple that works reasonably well, and is easy to understand.

Constructor & Destructor Documentation

WaveTableData()

WaveTableData::WaveTableData

(

)

~WaveTableData()

WaveTableData::~WaveTableData ( )

virtual

Member Function Documentation

AddSample()

void WaveTableData::AddSample

(

std::shared_ptr< AudioSampleData >

audioSampleData

)

Clear()

void WaveTableData::Clear

(

)

Clone()

FileData * WaveTableData::Clone ( ) const

overridevirtual

The derived implimentation should return a new derived instance of the class in question with identical, but separate data.

Implements AudioDataLib::FileData.

DumpCSV()

void WaveTableData::DumpCSV ( FILE * fp ) const

overridevirtual

Derivative implimentations should produce a command-separated list of human-readable data which can also be loaded as a CVS in spreadsheet software.

Parameters

[in]

fp

A pointer to a FILE object to which the text should be written.

Implements AudioDataLib::FileData.

DumpInfo()

void WaveTableData::DumpInfo ( FILE * fp ) const

overridevirtual

Derivative implimentations should produce informative, human-readable text about the file data.

Parameters

[in]

fp

A pointer to a FILE object to which the text should be written.

Implements AudioDataLib::FileData.

Reimplemented in AudioDataLib::SoundFontData, and AudioDataLib::DownloadableSoundData.

FindAudioSample()

const WaveTableData::AudioSampleData * WaveTableData::FindAudioSample	(	uint8_t	instrument,
		uint16_t	midiKey,
		uint16_t	midiVelocity ) const

GetAudioData()

std::shared_ptr< AudioData > WaveTableData::GetAudioData

(

uint32_t

i

)

const

GetAudioSample()

const AudioData * WaveTableData::GetAudioSample

(

uint32_t

i

)

const

GetNumAudioSamples()

uint32_t AudioDataLib::WaveTableData::GetNumAudioSamples ( ) const

inline

Merge()

void WaveTableData::Merge

(

const std::vector< const WaveTableData * > &

waveTableDataArray

)

---

The documentation for this class was generated from the following files:

• Source/Library/FileDatas/WaveTableData.h
• Source/Library/FileDatas/WaveTableData.cpp
